The Steel Dragon Tools® 300 Compact is a powerful, portable pipe threading machine that will thread, cut, and ream various sizes of pipes including black, galvanized, plastic-coated, stainless steel pipe, as well as IMC, and heavy-wall conduit. The Steel Dragon Tools® 300C will also thread bolts. The Steel Dragon Tools® 300C will thread pipe from 1/8 in. to 2 in. and bolts from 1/4 in. to 2 in.
Specifications:
- The Steel Dragon Tools® 815A Die Head compatible with RIDGID® Dies (RIDGID® 47765) (RIDGID® 47770).
- The Steel Dragon Tools® 815A is a self-oiling, auto-open die head that will create the exact same amount of threads every time.
- 1/4-inch to 2-inch Universal Die Head and 2-1/2-inch to 4-inch Receding Die Head will cut tapered or straight NPT and NPSM threads.
- Steel Dragon Tools® 360 Cutter is a roll-type cutoff, self-centering, full-floating cutter.
- Steel Dragon Tools® 344 Reamer is a five-flute cone, right hand only reamer for 1/8-inch to 2-inch pipe.

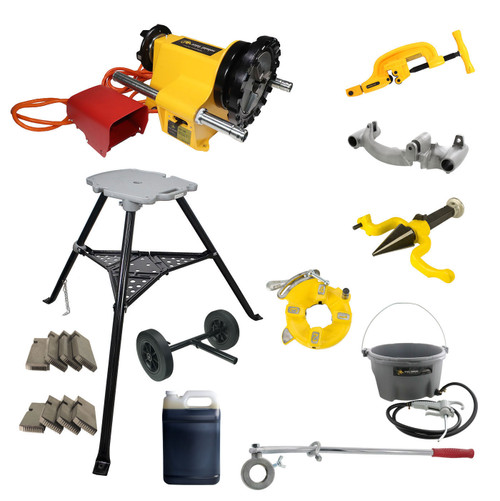

Package Includes:
- Steel Dragon Tools® 300C Pipe Threading Machine
- Steel Dragon Tools® 815A Self-Opening Die Head
- Steel Dragon Tools® 360 Cutter
- Steel Dragon Tools® 344 Reamer
- Steel Dragon Tools® 47765 1/2 in. to 3/4 in. high-speed steel universal dies.
- Steel Dragon Tools® 47770 1 in. to 2 in. high-speed steel universal dies.
- Threading oil not included.
Technical Specifications:
- Pipe Capacity: 1/8 in. to 2 in. (3 mm-50 mm)
- Bolt Capacity: 1/4 in. to 2 in. (6 mm-50 mm)
- Motor: Universal, 1/2 HP, 115 V, 60 Hz, 38 RPM, with Reverse
- Includes integral foot switch.
- Hammer-type chuck with replaceable, rocker-action jaw inserts.
- Self-Oiling System: Through-head with integral oil reservoir, self-priming, constant-flow, gear-drive pump.
- Included equipment fits RIDGID® machines and parts.
- One (1) warranty against manufacturer defect.
- Overall Weight: 220 lbs. (100 kg)
- Overall Dimensions: 36 in. x 18 in. x 18 in.
WARNING: This product can expose you to chemicals including Carbon Black, and Glass Wool Fibers which are known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
- bolt_capacity:
- 1/4 in. - 2 in.
- cart:
- No (4 legs)
- die_head:
- Universal Self Opening
- fits_ridgid_dies:
- Yes
- foot_pedal:
- Yes
- hertz:
- 60
- horsepower:
- 1/2 hp
- max_pipe_capacity:
- 2
- model:
- 300 Compact
- motor_type:
- Universal
- npsm:
- No*
- npt:
- Yes
- overall_depth:
- 31
- overall_height:
- 19
- overall_width:
- 22
- pipe_capacity:
- 1/8 in. - 2 in.
- reverse:
- Yes
- rpm:
- 38
- self_oiling_system:
- No
- tool_type:
- Pipe Threading Machine
- video_link_url:
- rDuZhAgP3js
- voltage:
- 110
- wattage:
- 375 watts
- pack_quantity:
- 1
